Transistorized Dispatcher Radiophone CC 3501 - D33AA T-1100A SP6

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1965 ??

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 266422

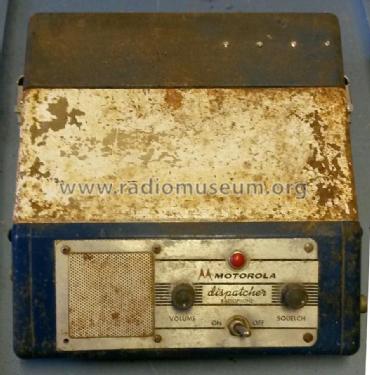

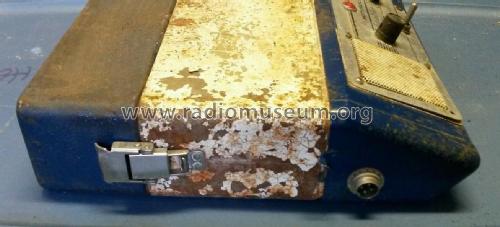

• Picture

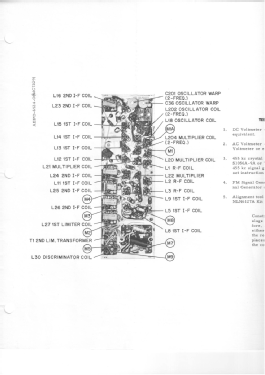

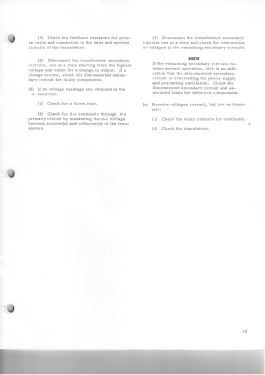

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Transistorized Dispatcher Radiophone CC 3501 - D33AA T-1100A SP6 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, with any shape - general.

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 4615 models, 2967 with images and 4114 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
