VT-71-M-A TS-4J

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1948
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 93253

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: VT-71-M-A TS-4J - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 16.75 x 9.5 x 17 inch / 425 x 241 x 432 mm
  • Notes

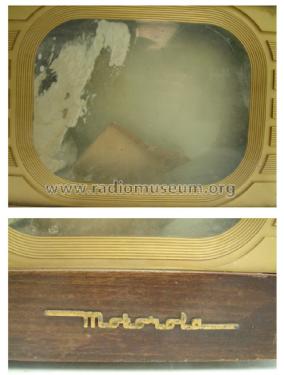

  • 7" tabletop, mahogany, US-VHF Tuner.
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
