X80 Ch= HS-6121

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1964 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 247787

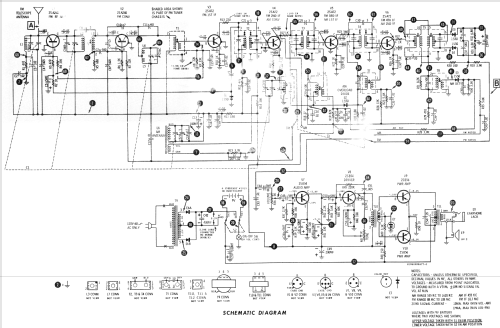

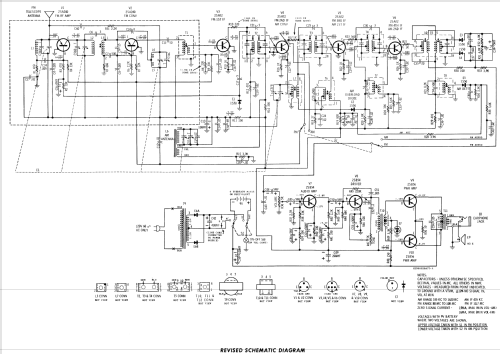

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / Either: AC, 60 cycle, 120V or DC, 6 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: X80 Ch= HS-6121 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes

  • The Motorola X80 is an AC or battery operated, solid state BC and FM band receiver.  Has 10 transistors, 5 diodes, a voltage/temperature sensitive diode and a full wave selenium rectifier.  The radio is powered by either Qty(6) 1.5v Eveready #1015 batteries (or equivalent) or by 120VAC.  A ferrite antenna is used for the AM antenna, and a collapsible monopole antenna used for FW reception.  An earphone jack is provided on the side of the radio, which when used, disconnects the speaker for private listening.

    AM tuning range is 535 to 1620kHz.  FM tuning range is 88 to 108MHz.





  • Literature/Schematics (1)

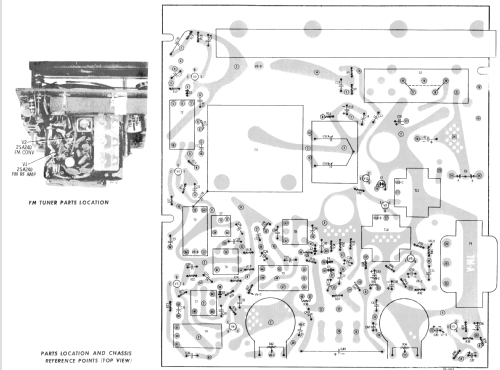

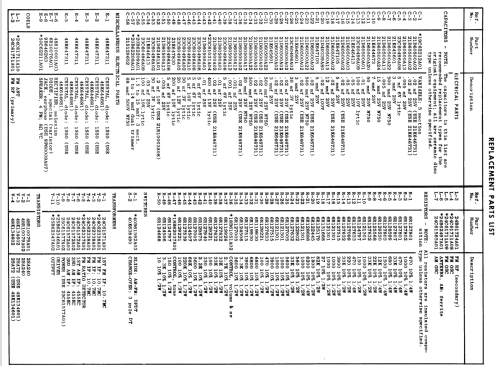

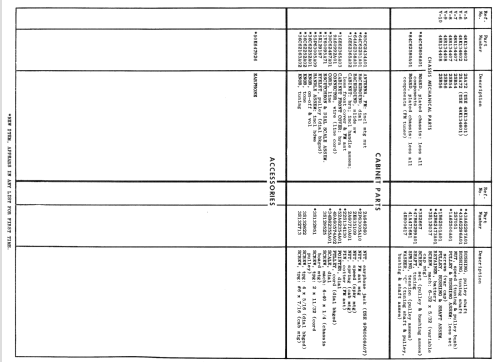

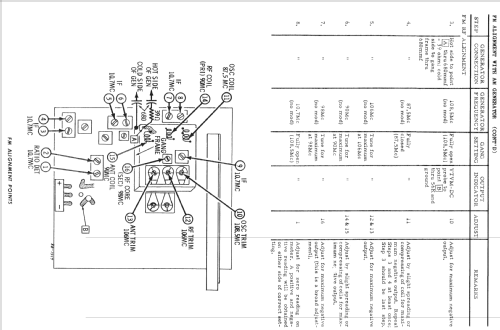

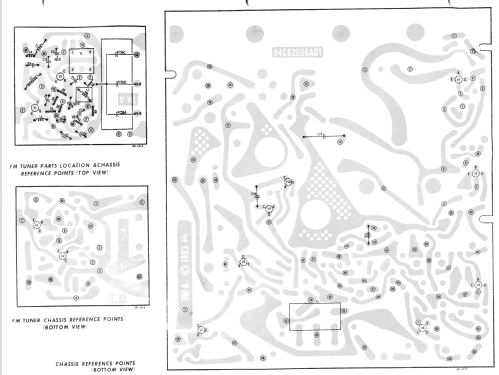

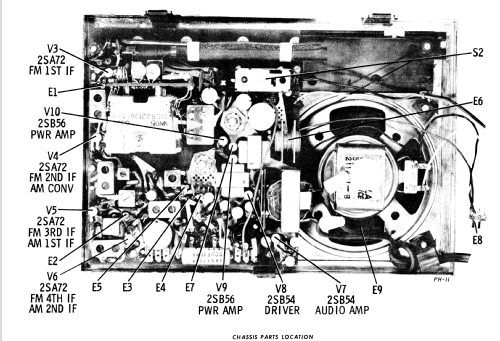

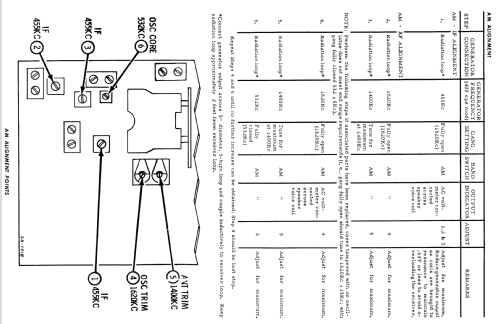

  • - - Manufacturers Literature (Motorola Datasheet 68P60084A28 Dated 4-64)
  • Literature/Schematics (2)

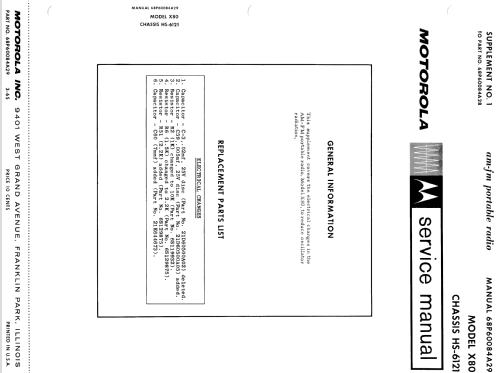

  • - - Manufacturers Literature (Motorola Datasheet 68P60084A29 Dated 3-65)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
