Y21CT2M Ch= TS-905Y

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1957/1958
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 278387

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 31
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Y21CT2M Ch= TS-905Y - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console with any shape - in general
  • Notes

  • The Motorola Y21CT2M is a 21" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis TS-905Y, VHF tuner VTT-83Y, UHF TT-87 tuner and picture tube 21AXP22A.

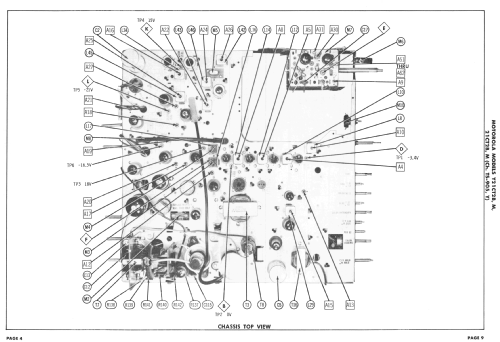

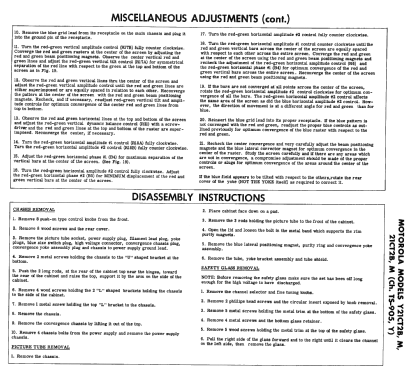

    The following models use the same chassis family and schematics:

    Model Chassis VHF/UHF Cabinet
    21CT2B TS-905 VHF Swedish Oak
    Y21CT2B TS-905Y VHF/UHF Swedish Oak
    21CT2M TS-905 VHF Sienna Mahogany
    Y21CT2M TS-905Y VHF/UHF Sienna Mahogany
    21CK3B TS-905 VHF Swedish Oak
    Y21CK3B TS-905Y VHF/UHF Swedish Oak
    21CK3M TS-905 VHF Sienna Mahogany
    Y21CK3M TS-905Y VHF/UHF Sienna Mahogany

    NOTE: The SAMS service data does not include information on the UHF TT-87 tuner.  It is assumed that the tuner contains 1 tube, which is listed as "unknown".

  • Mentioned in
  • US "Radio & TV News" June 1957
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
