Y21K132W Ch= TS-558Y
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 157735
Picture from Motorola Datasheet

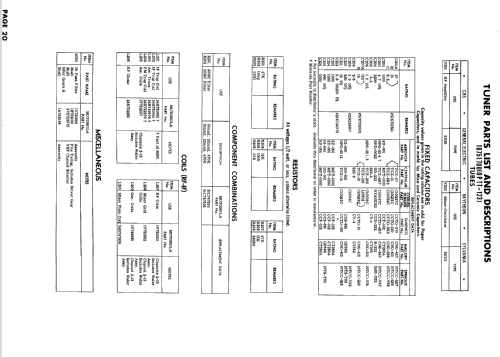

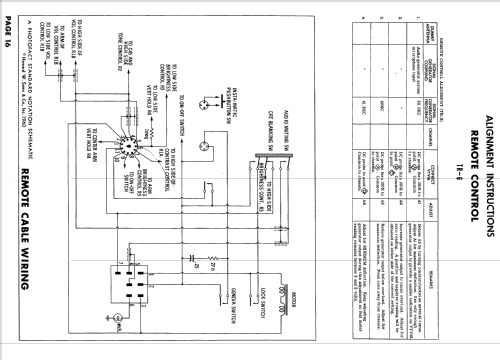

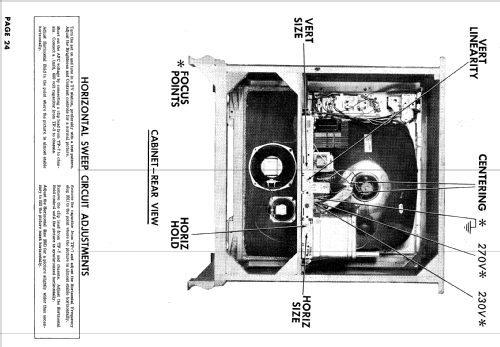

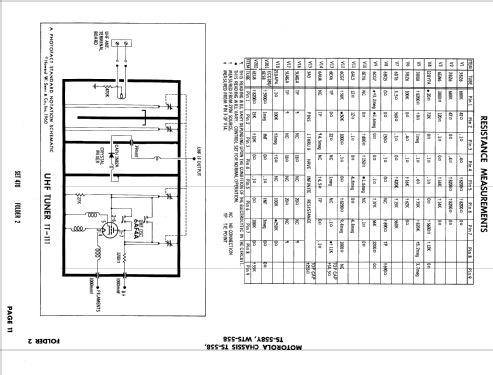

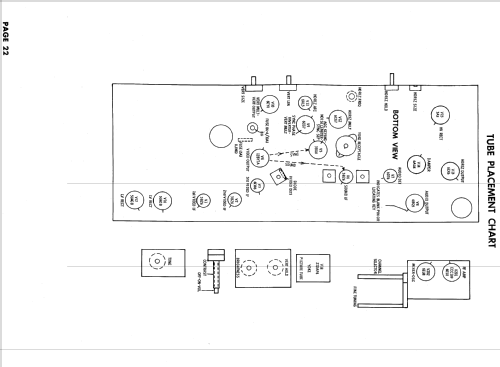

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6ES8 6EU8 6AF4A 3BZ6 3BZ6 6EW6 3BU8 12BY7A 3BZ6 6DT6 6C4 6BQ5 6CG7 6AL5 6CG7 6EX6 6AU4GTA 6EY6 3A3 5U4GB 21DAP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110 to 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Y21K132W Ch= TS-558Y - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Console with any shape - in general
- Notes
-
The Motorola Y21K132W is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis TS-558Y, VHF tuner OPTT-123Y, UHF tuner TT-111 and picture tube 21DAP4. Console model with Walnut wooden cabinet. Has Qty(1) germanium diode video detector. Has Qty(1) PM 4" speaker and Qty(1) Elliptical PM 6" x 9" speaker.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-60, Set 470, Folder 2)
- Literature/Schematics (2)
- - - Manufacturers Literature (Motorola Datasheet 68P752662 Dated 7-59)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
