Y21K37BRA Ch= TS-534YB

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 233137

• Picture

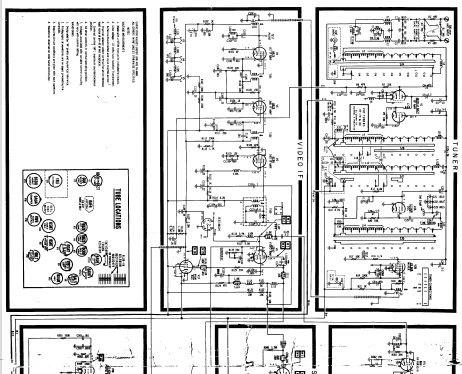

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6BC8 or 6BZ7 6AF4 6U8 6BZ6 6BZ6 6CB6 12BY7 6AU6 6AU6 6AL5 6SN7 6W6 6SN7 6BL7 6AU6 6SN7 6CD6 6AU4 1B3 21ALP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 105 to 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 7 inch = 17.8 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Y21K37BRA Ch= TS-534YB - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Console with any shape - in general

• Notes

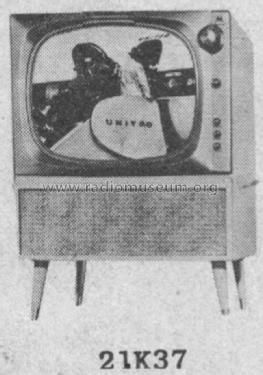

• The Motorola Y21K37BRA is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis TS-534YB, VHF tuner TT-80, UHF tuner RTT-37 and picture tube 21ALP4A.  Console model, Bronze metal cabinet. Has Qty(2) Selenium Rectifiers and Qty(1) germanium diode detector.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• - - Manufacturers Literature (Motorola Datasheet 68P736362)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 312 Folder 8 1956)

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Set 329 Folder 1)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
