Y21K44W Ch= TS-533Y
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 297748
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6BC8 6U8 6AF4A 6BZ6 6BZ6 6CB6 12BY7 6AU6 6AU6 6AU6 6AL5 6SN7GT 6W6GT 6SN7GTB 6BL7GT 6SN7GTB 6CD6G 6AU4GT 1B3GT 5U4GB 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Y21K44W Ch= TS-533Y - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Motorola model Y21K44W is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with chassis TS-533Y, VHF tuner VTT-80, UHF tuner QTT-37 and picture tube 21ALP4A.
- Literature/Schematics (1)

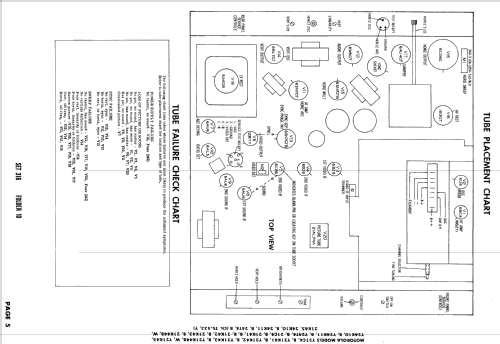

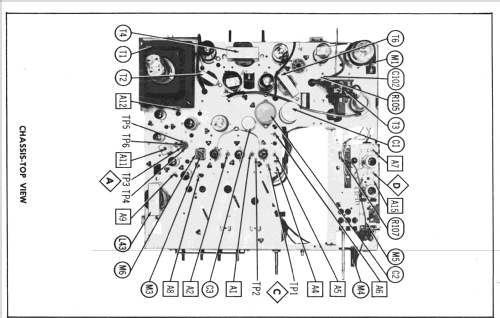

- Photofact Folder, Howard W. SAMS (Set 316 Folder 10 Dated 5-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
