Y21K46 Ch= TS-530Y

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 208541

• Picture

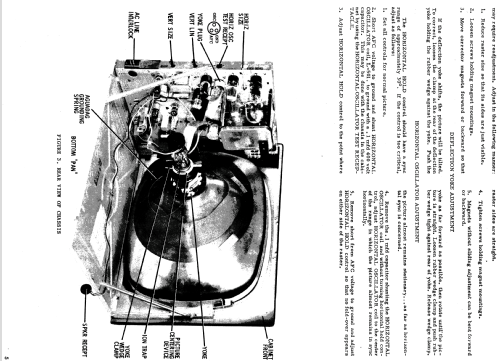

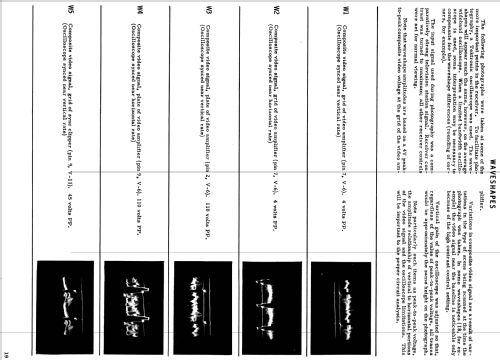

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 4BC8 5U8 6AF4A 3BZ6 3BZ6 3CB6 6AU8 3AU6 3AL5 7AU7 12L6 7AU7 12BH7A 6SN7GTB 12DQ6 19AU4 1B3 21ALP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Y21K46 Ch= TS-530Y - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Console model, Mahogany, masonite. This model is listed in Motorola Supplement No. 1 for chassis TS-530, however the receiver Model Breakdown Chart mistakenly lists Chassis TS-534 used for this model.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 315 Folder 7 Dated 5-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 330 Folder 1 Dated 9-56)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
