Y23K33M Ch= TS-568Y
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 237559

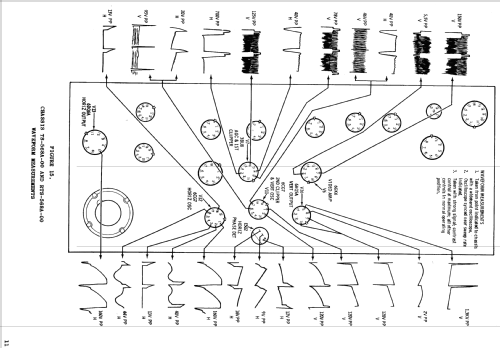

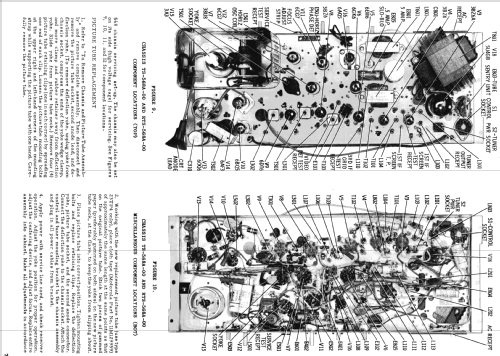

Picture from Motorola Datasheet
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6ES8 6EU8 6AF4A 3BZ6 3BZ6 6EW6 6GK6 3BZ6 6DT6 6BQ5 3BU8 6CG7 6CG7 6DQ6 6AF3 6AQ5 3A3 5U4GB 23TP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Y23K33M Ch= TS-568Y - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Console with any shape - in general
- Notes
-
The Motorola Y23K33M is a 23" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis TS-568Y, VHF tuner OPPT-130Y, UHF tuner TT-601 and picture tube 23TP4. Console model with Mahogany wooden masonite cabinet. Uses Qty(1) elliptical PM 6" x 9" speaker and Qty(1) 4" speaker. Has dual Selenium Rectifier and Qty(1) germanium diode video detector.
- Source of data
- - - Manufacturers Literature
- Literature/Schematics (2)
- - - Manufacturers Literature (Motorola Datasheet 68P65110A05)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
