Chieftain Teardrop NE
Motor Spares Ltd., Melbourne
- Country
- Australia
- Manufacturer / Brand
- Motor Spares Ltd., Melbourne
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 126328
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm
- Material
- Metal case
- from Radiomuseum.org

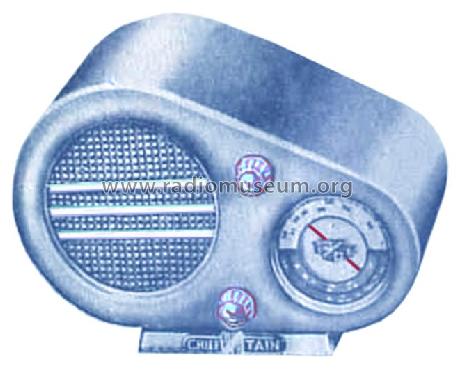

- Model: Chieftain Teardrop NE - Motor Spares Ltd., Melbourne
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Notes
- Metal case available in 3 colors: blue, green, or cream.
- Source of data
- -- Collector info (Sammler)
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. IX
- Author
- Model page created by Peter Hughes. See "Data change" for further contributors.
