• Country
• Soviet Union

• Manufacturer / Brand
• Leningrad Plant N°779 MSP, MRP, factory code 487

• Year
• 1957 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 302425

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6Н9С 6П6С 6Ц5С

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (undistorted)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

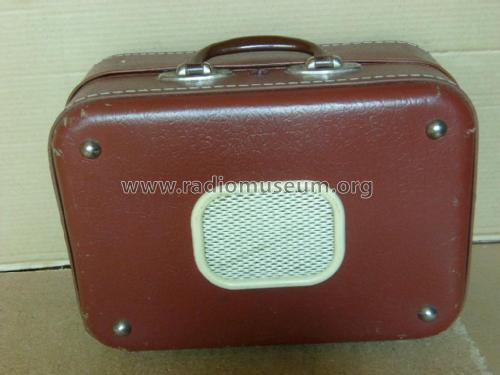

• Model: Юбилейный - РГ-3 Jubilee - RG-3 - Leningrad Plant N°779 MSP, MRP

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 260 x 160 x 375 mm / 10.2 x 6.3 x 14.8 inch

• Net weight (2.2 lb = 1 kg)
• 5.7 kg / 12 lb 8.9 oz (12.555 lb)

• Author
• Model page created by Vladimir Manannikov. See "Data change" for further contributors.

• Other Models

• Here you find 4 models, 4 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Leningrad Plant N°779 MSP, MRP, factory code 487
