• Country
• Soviet Union

• Manufacturer / Brand
• Leningrad Plant N°779 MSP, MRP, factory code 487

• Year
• 1960 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 328647

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6Н2П 6П14П

• Number of Transistors

• Semiconductors
• Д7Д Д7Д Д7Д

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS; Loudspeaker + integr.Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 127/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

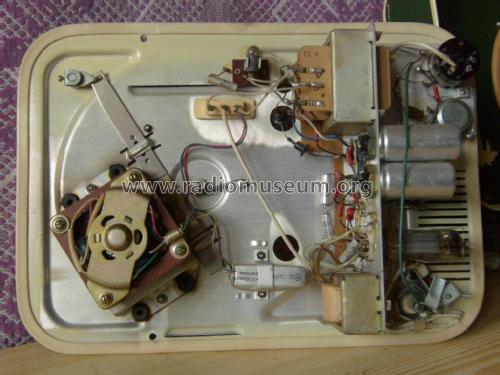

• Model: Юбилейный - РГ-3М Jubilee - RG-3M - Leningrad Plant N°779 MSP, MRP

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 270 x 170 x 380 mm / 10.6 x 6.7 x 15 inch

• Notes

• Successor model of Юбилейный"  РГ3 having one more speed, 33-45-78. These models were produced in other plants too. Rectifier based on autotrafo, thus chassis is isolated from body.



• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Author
• Model page created by Vladimir Manannikov. See "Data change" for further contributors.
