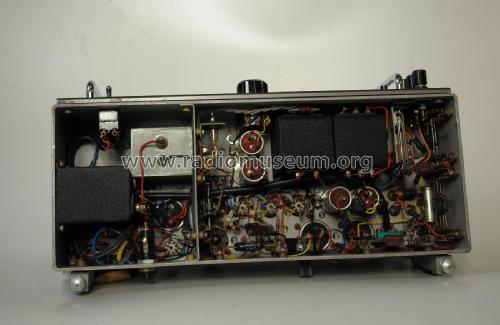

Decade Oscillator D-695-A
Muirhead & Co. Ltd.; Beckenham
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Muirhead & Co. Ltd.; Beckenham
- Year
- 1961
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 336705
- Number of Tubes
- 7
- Material
- Metal case
- from Radiomuseum.org
- Model: Decade Oscillator D-695-A - Muirhead & Co. Ltd.; Beckenham
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 440 x 265 x 200 mm / 17.3 x 10.4 x 7.9 inch
- Notes
-
Decade Oscillator, 10 Hz-31k Hz.
Units: 0-11
Tens: 1-11
Hundreds: 0-10
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Jeffrey Fisher. See "Data change" for further contributors.
