- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Mullard (NZ), C. & A. Odlin Co. Ltd. (Odlins); Wellington
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339834

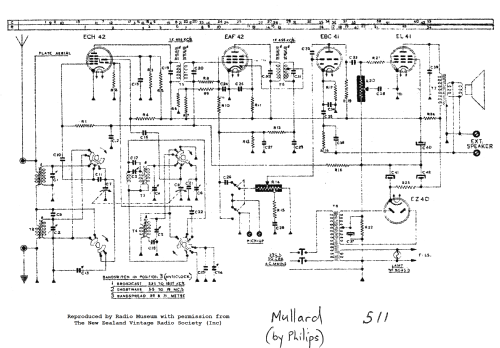

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Special material, described in the notes.
- from Radiomuseum.org
- Model: 511 - Mullard NZ, C. & A. Odlin Co.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 18.5 x 12.25 x 8.75 inch / 470 x 311 x 222 mm
- Notes
-
5-Valve superhet all wave table model receiver.
Cabinet made from "Arborlite" plastic with woodgrain finish.
Gramophone pickup and extension speaker connections.
See also Philips Model BZ437A.
- Price in first year of sale
- 29.88 NZ £
- Mentioned in
- -- Original prospect or advert (Press 18 May 1956 Page 8)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
