• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Mullard (NZ), C. & A. Odlin Co. Ltd. (Odlins); Wellington

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339832

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF80 EBC41 EL84 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 528 - Mullard NZ, C. & A. Odlin Co.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14.75 x 10.75 x 0 inch / 375 x 273 x 0 mm

• Notes

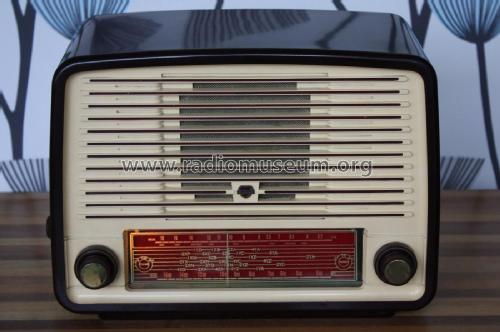

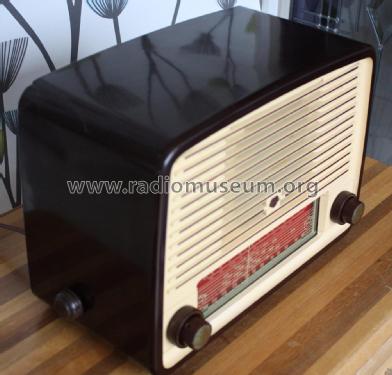

• 5-Valve superhet dual wave table model receiver.

  Includes extension speaker and gramophone pickup connections.

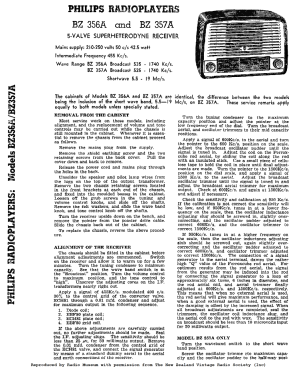

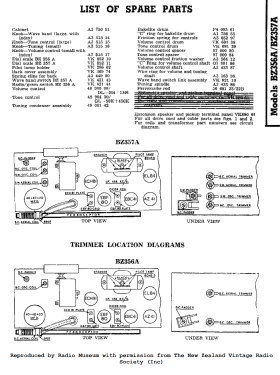

  See also Philips Model BZ357A.

  Manufactured by Philips Electrical Industries of NZ Ltd for C & A Odlin Co. Ltd.

• Price in first year of sale
• 27.88 NZ £

• Mentioned in

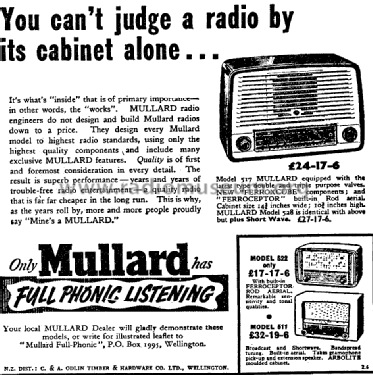

• -- Original prospect or advert (Press 17 April 1956 Page 10)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
