• Country
• Great Britain (UK)

• Manufacturer / Brand
• Mullard Wireless, London (see also Mullard Radio Valve)

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117797

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF9 ECH3 EF9 EBL1 EM4 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz; 1 AF stage(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: MAS139 - Mullard Wireless, London see

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Literature/Schematics (1)

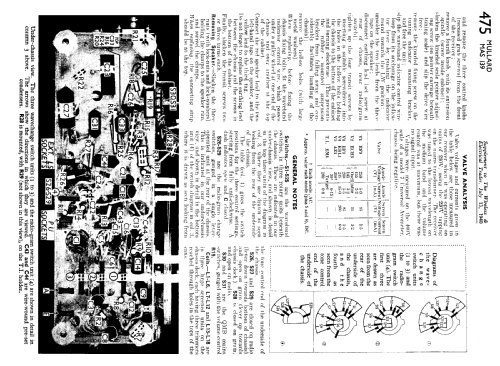

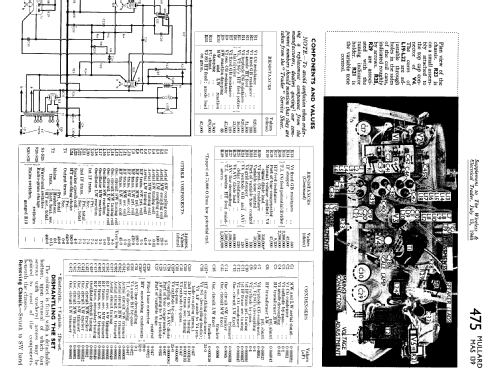

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (475)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.

• Other Models

• Here you find 143 models, 117 with images and 59 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
