• Country
• Great Britain (UK)

• Manufacturer / Brand
• Mullard Wireless, London (see also Mullard Radio Valve)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104324

• Number of Tubes
• 6

• Valves / Tubes
• FC4 VP4B TDD4 PenA4 TV4 DW2_Mullard

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

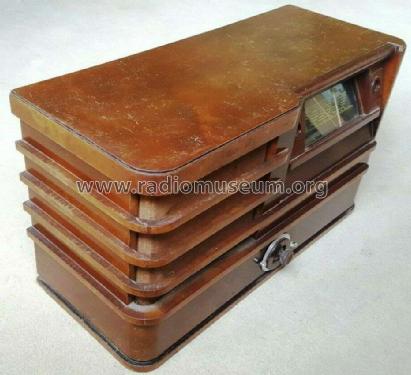

• Model: MAS5 - Mullard Wireless, London see

• Shape
• Tablemodel, low profile (big size).

• Notes

• The AC/DC version of this model is MUS5.

• Price in first year of sale
• 18.00 GBP

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (639)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 143 models, 117 with images and 59 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
