- Country
- Great Britain (UK)
- Manufacturer / Brand
- Mullard Wireless, London (see also Mullard Radio Valve)
- Year
- 1948 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 118112

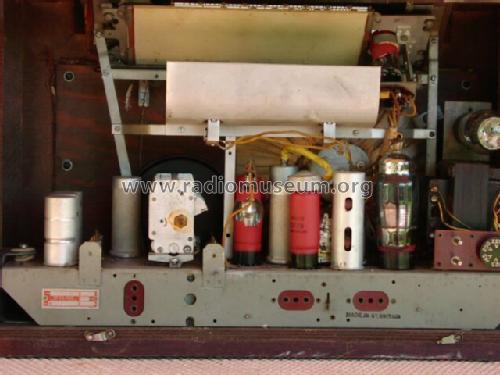

From Pieter Dekock's site
With permission of Pieter Deckok
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: MAS-293 - Mullard Wireless, London see
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 562 x 360 x 220 mm / 22.1 x 14.2 x 8.7 inch
- Net weight (2.2 lb = 1 kg)
- 12.8 kg / 28 lb 3.1 oz (28.194 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Mario Coelho. See "Data change" for further contributors.
