- Country
- Australia
- Manufacturer / Brand
- Mullard Radio Company (Australia) Ltd.; Sydney
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 190841
Ebay-au_276636273981
Ebay-au_276636273981
Ebay-au_276636273981
Ebay-au_276636273981
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: MAS1109 - Mullard Radio Company
- Shape

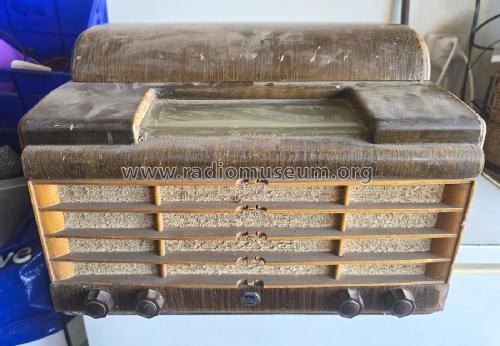

- Tablemodel, low profile (big size).
- Notes
-

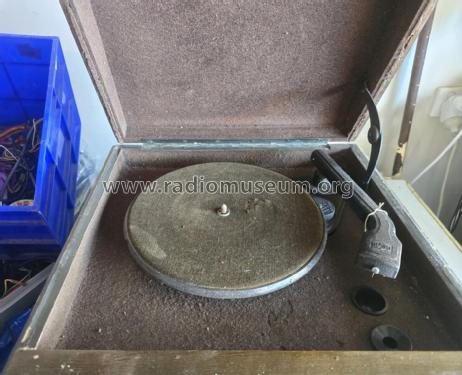

Broadcast only tablegram with single speed 78RPM record player.
See also Philips Radioplayer version, Model 120.

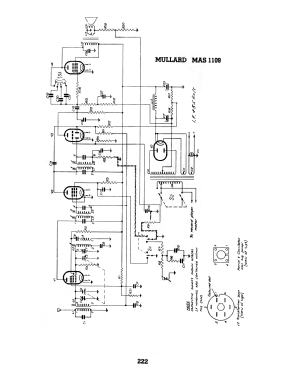

- Circuit diagram reference
- Australian Official Radio Service Manual Vol. IX
- Literature/Schematics (1)
- - - Manufacturers Literature (Mullard Master Radio Service Data.)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 9, 1951, Page 222.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
