• Country
• United States of America (USA)

• Manufacturer / Brand
• Multi-Products Company (Elmac), Michigan

• Year
• 1956

• Category
• Amateur Transmitter (only)

• Radiomuseum.org ID
• 100173

• • Brand: Elmac

• Number of Tubes
• 9

• Valves / Tubes
• 6146 6AQ5 6AG5 6AK6 6BJ6 0B2 6AU6 12AU7 5881 5881

• Main principle
• Transmitter

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit. / ? Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

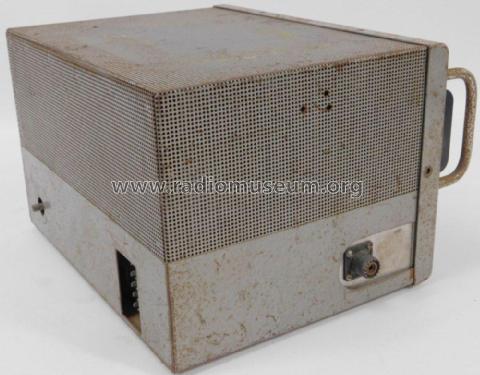

• Model: Trans-citer AF-67 - Multi-Products Company Elmac,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 11.5 x 11.25 x 7 inch / 292 x 286 x 178 mm

• Notes
• Low-powered transmitter, bandswitching on 160, 80/75, 40, 20, 15 and 11/20 meters.

• Price in first year of sale
• 177.00 $

• Literature/Schematics (1)
• Allied Radio Catalog Nº 150, 1956

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.

• Other Models

• Here you find 13 models, 9 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Multi-Products Company (Elmac), Michigan
