• Country
• United States of America (USA)

• Manufacturer / Brand
• Multi-Products Company (Elmac), Michigan

• Year
• 1961

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 124411

• • Brand: Elmac

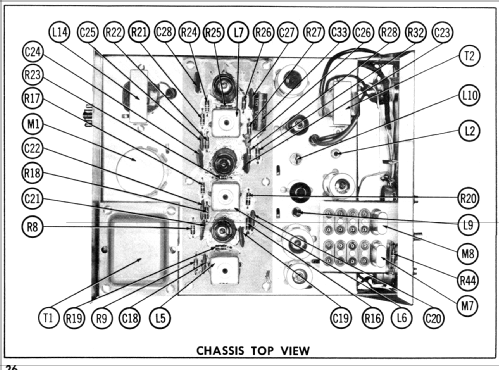

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6BJ6 6BE6 6BH8 6BJ6 6BJ6 6AL5 6AN8 6AQ5A 6AQ5A

• Main principle
• Transceiver; ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Line / Batteries (any type) / 110 - 120; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Citi-Fone CD-5/12 - Multi-Products Company Elmac,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Transceiver, coverage any 5 of 22 CB channels.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 525 Folder 5 4-1961)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
