• Country
• United States of America (USA)

• Manufacturer / Brand
• Multivox Corporation of America, New York

• Year
• 1963

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 182280

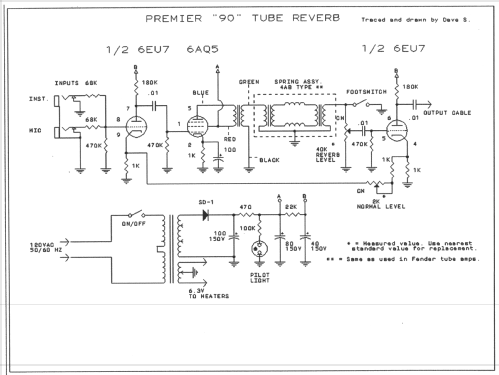

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6EU7 6AQ5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Premier 90 Reverb - Multivox Corporation of

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 130 x 130 mm / 16.5 x 5.1 x 5.1 inch

• Notes
• Musiker-Vorverstärker mit Hallspirale.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Author
• Model page created by Hannes Gerber. See "Data change" for further contributors.
