• Country
• Spain

• Manufacturer / Brand
• Mundial Radio; Barcelona

• Year
• 1958 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 334478

• Number of Tubes
• 5

• Valves / Tubes
• HK90 HF93 HBC91 HL92 HY90

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

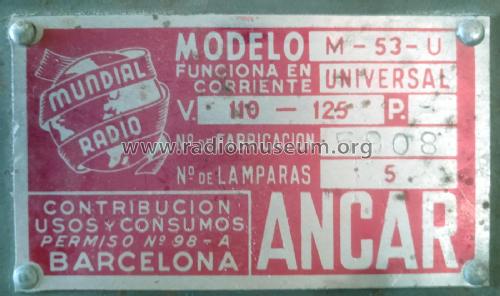

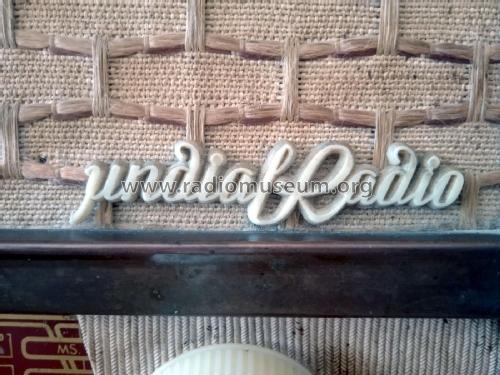

• Model: Estudio, Serie Melodía M-53-U - Mundial Radio; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 350 x 260 x 180 mm / 13.8 x 10.2 x 7.1 inch

• Notes

• Bandas: Media (550-1600 kHz), Pesquera (1,4-3,6 MHz) y Corta (50-16 m)

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Author
• Model page created by Carlos Saavedra. See "Data change" for further contributors.
