• Country
• Spain

• Manufacturer / Brand
• Mundial Radio; Barcelona

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 278149

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

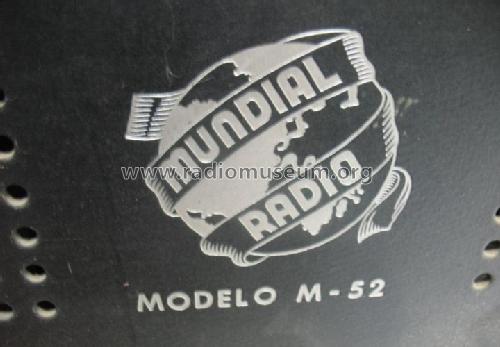

• Model: M-52 - Mundial Radio; Barcelona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 400 x 260 x 220 mm / 15.7 x 10.2 x 8.7 inch

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Author
• Model page created by José Luis Gómez Rivera. See "Data change" for further contributors.

• Other Models

• Here you find 31 models, 28 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Mundial Radio; Barcelona
