• Country
• Spain

• Manufacturer / Brand
• Muns; Barcelona

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 321361

• Number of Transistors
• 7

• Semiconductors
• OC44 OC46 OC45 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

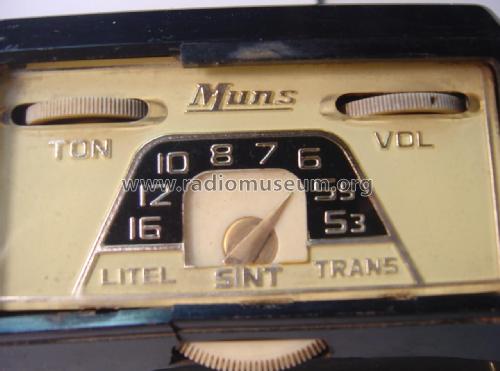

• Model: Litel Trans - Muns; Barcelona

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 110 x 155 x 55 mm / 4.3 x 6.1 x 2.2 inch

• Mentioned in
• Radios españolas Joan Julià Enrich (página 99, figura 7)

• Author
• Model page created by Joan lluis Madrenas-Palou. See "Data change" for further contributors.

• Other Models

• Here you find 4 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
