• Country
• United States of America (USA)

• Manufacturer / Brand
• Muntz TV Inc.; Hollywood (CA)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 290400

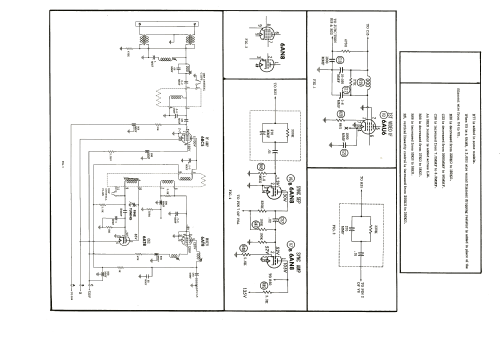

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• 60 cycles, 117 V = 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 521ST2 47A4 - Muntz TV Inc.; Hollywood CA

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 274 Folder 10)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 311 Folder 1 , Production Changes Bulletin 149)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
