• Country
• United States of America (USA)

• Manufacturer / Brand
• Muntz TV Inc.; Hollywood (CA)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 132234

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6BC5 or 6AG5 6J6 6AU6 or 6AG5 6AU6 6AU6 6AU6 6AU6 6T8 6AQ5 12AT7 6SN7GT 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 16DP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: M32 Ch= TV17A3 - Muntz TV Inc.; Hollywood CA

• Shape
• Tablemodel, with any shape - general.

• Notes

• Muntz model M32 is a 16” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis TV17A3, VHF tuner PR-0166-1 or PR-0166-2 and picture tube 16DP4A, mahogany cabinet.


• Literature/Schematics (1)

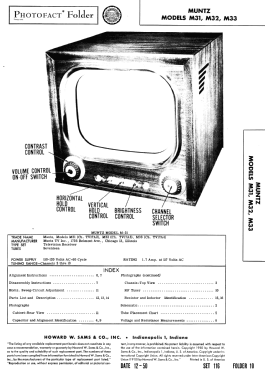

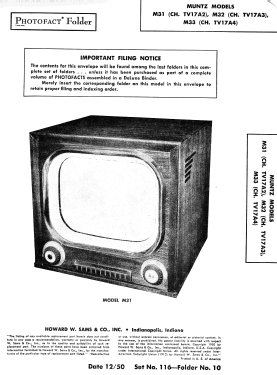

• Photofact Folder, Howard W. SAMS (Set 116, Folder 10 dated 12-50)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
