A-275 {А-275}

Murom Radio Works

Data
Forum
Pictures
Collections

  • Year
  • 1979
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 89405

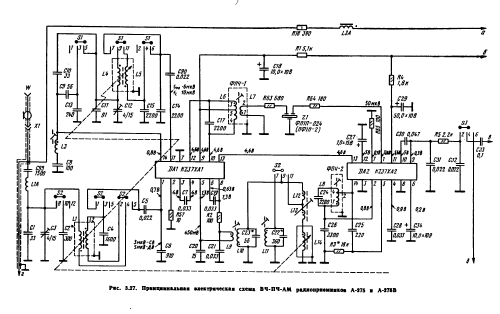

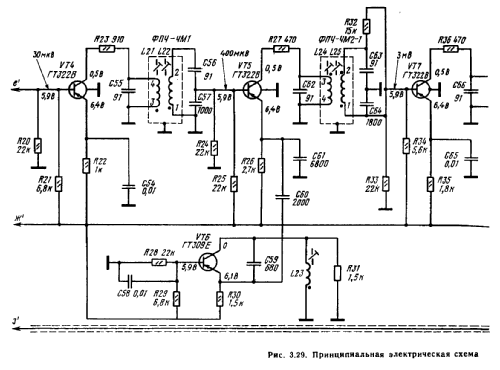

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 12
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: A-275 {А-275} - Murom Radio Works
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Radio set used in russian cars VOLGA "gaz-24" and "VAZ" (Lada) 2103, 2106, 2121.
    Preset (pushbuttons) of six fixed radio stations. Schema - 12 transistors and 3 IC. Complete with loudspeaker "4gd-8e".
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
