• Country
• Soviet Union

• Manufacturer / Brand
• Murom Radio Works

• Year
• 1969

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 198158

• Number of Transistors
• 8

• Semiconductors
• ГТ309 ГТ309 ГТ309 ГТ309 МП41 МП25 П216 П216

• Main principle
• Superhet with RF-stage; ZF/IF 465/+-2 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12,8 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

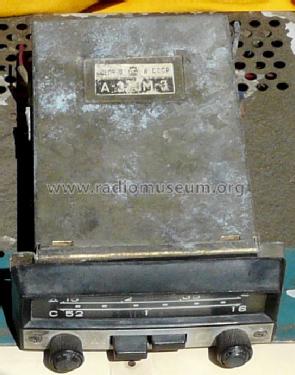

• Model: A-370M-E {А-370М-Э} - Murom Radio Works

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 94 x 39 x 172 mm / 3.7 x 1.5 x 6.8 inch

• Notes
• Murom A-370;
  Common USSR car radio model, compare the variants
  A-370 for car Zhiguli VAZ-2101 (Lada 2101)
  A-370M for car Moskvich M-412 from the Moscow AZLK plant,
  A-370M-E,
  A-370M1-E,
  AT-64 for Moskvich 408 (with slightly different RF stage),
  with each same circuit but different sizes for the mentioned USSR cars as well as for the ZAZ Zaporozhets.
  In set with remote type 4GD8 speaker.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
