ARZ-54 {АРЗ-54}

• Country
• Soviet Union

• Manufacturer / Brand
• Murom RIP Works

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72916

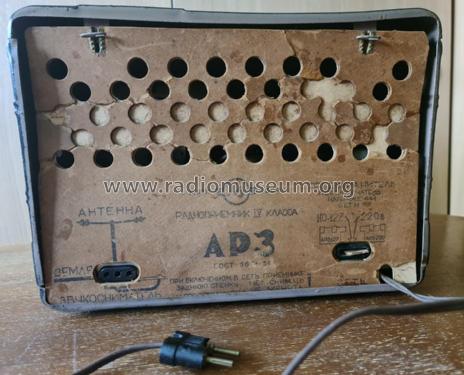

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6А7 6Б8С 6Ц5С 6П6С

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: ARZ-54 {АРЗ-54} - Murom RIP Works

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 350 x 255 x 175 mm / 13.8 x 10 x 6.9 inch

• Notes
• Variants ARZ-49 and ARZ-51 were produced in Alexandrov Radio Works.
  Variants ARZ-52 and ARZ-54 in Murom RIP Works and Zaporozhje "Radiopribor" Works, Ukraine, SU.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Literature/Schematics (1)
• E.A. Levitin, "Radio sets", Moscow 1960

• Author
• Model page created by Peter Breu. See "Data change" for further contributors.
