• Country
• Soviet Union

• Manufacturer / Brand
• Murom RIP Works

• Year
• 1964–1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179505

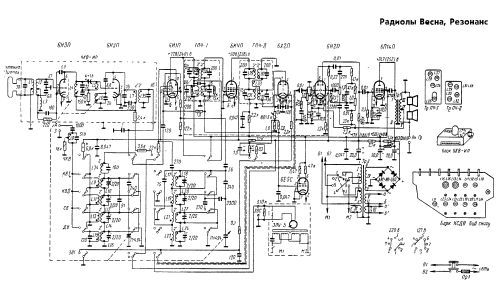

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6Н3П 6И1П 6К4П 6Х2П 6Е5С 6Н2П 6П14П

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rezonans {Резонанс} - Murom RIP Works

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 430 x 290 x 325 mm / 16.9 x 11.4 x 12.8 inch

• Notes
• MW, LW, 2SW, (64-73)MHz FM. Analog with SU radio sets "Lira" and "Vesna".

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
