A100

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Murphy Radio Ltd.; Welwyn Garden City

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79059

• Picture
• Schematics

Previous Next

Previous Next

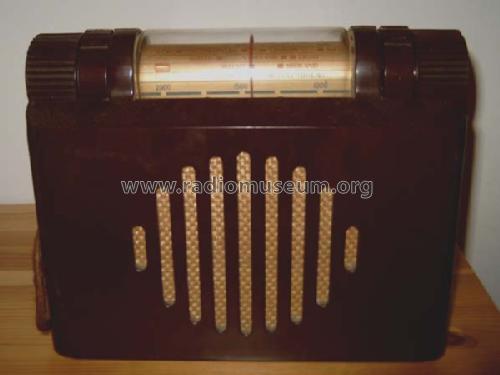

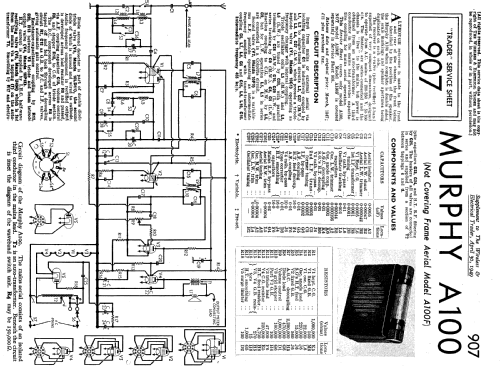

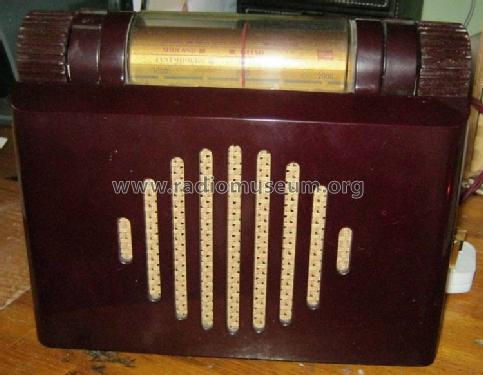

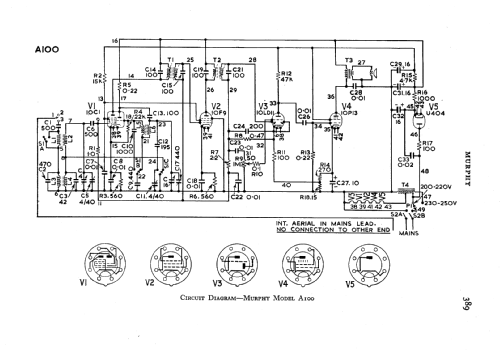

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 10C1 10F9 10LD11 10P13 U404

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-220; 230-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: A100 - Murphy Radio Ltd.; Welwyn

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9.25 x 7.5 x 4.75 inch / 235 x 191 x 121 mm

• Notes
• Dark red Bakelite case. Des.: A.F.Thwaites. Same case for model A100F.

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Price in first year of sale
• 15.00 GBP

• Source of data
• Radio! Radio!

• Mentioned in
• Radio-Mentor (1949 H. 06, S.250)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
