- Country
- Great Britain (UK)
- Manufacturer / Brand
- Murphy Radio Ltd.; Welwyn Garden City
- Year
- 1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121723

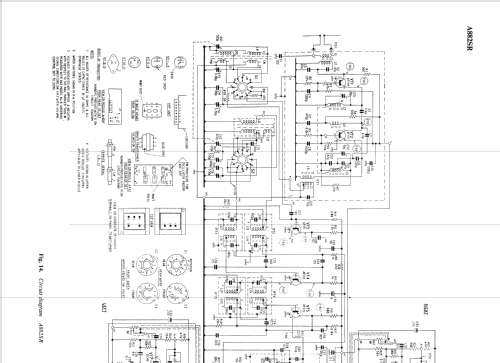

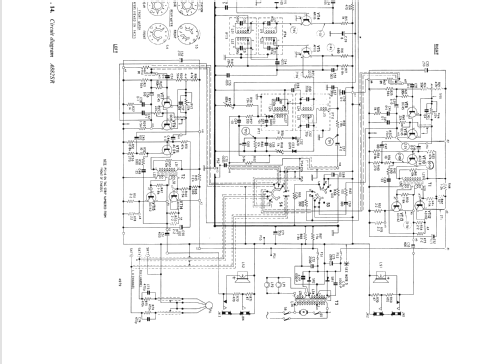

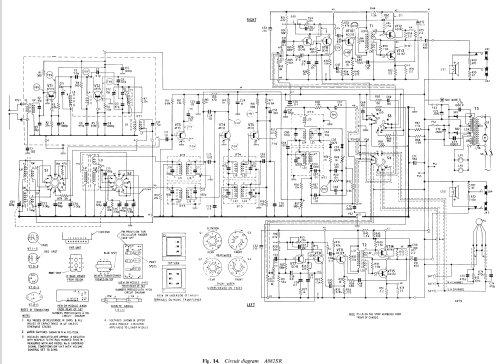

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- AF114 AF115 AF115 AF116 AF116 OC45 OC45 OC45 OC45 AD162 AD162 AD162 AD162 AD162 AD162
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200; 220; 250 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 25 cm = 9.8 inch
- Power out
- 30 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: A882SR - Murphy Radio Ltd.; Welwyn
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1194 x 734 x 470 mm / 47 x 28.9 x 18.5 inch
- Source of data
- - - Data from my own collection
- Author
- Model page created by Juan José Gonzalez-Reguera. See "Data change" for further contributors.
