- Country
- Great Britain (UK)
- Manufacturer / Brand
- Murphy Radio Ltd.; Welwyn Garden City
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 105003
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 6 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org

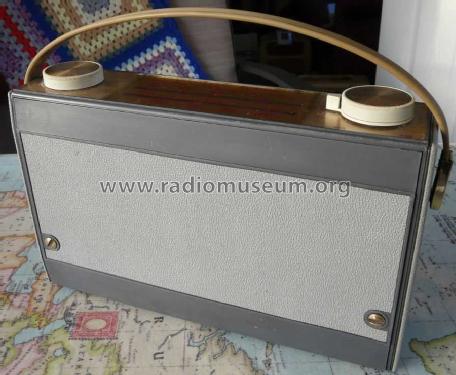

- Model: B583 - Murphy Radio Ltd.; Welwyn
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 10.625 x 6.625 x 2.625 inch / 270 x 168 x 67 mm
- Notes
- Released in March 1962 price £13 2s 0d plus purchase tax.
- Net weight (2.2 lb = 1 kg)
- 3 lb 0 oz (3 lb) / 1.362 kg
- Price in first year of sale
- 17.00 GBP
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS)
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
