Deluxe Table Receiver TA-276
Murphy Radio Ltd.; Welwyn Garden City
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Murphy Radio Ltd.; Welwyn Garden City
- Year
- 1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 218064
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 90-130 190-250 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Deluxe Table Receiver TA-276 - Murphy Radio Ltd.; Welwyn
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 622 x 432 x 254 mm / 24.5 x 17 x 10 inch
- Notes
- Push Pull output.

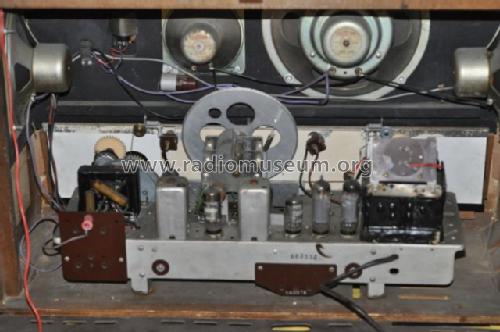

Speakers are Celestion 17 cm, 10x 8cm, 10x 8, 8cm
- Net weight (2.2 lb = 1 kg)
- 14.5 kg / 31 lb 15 oz (31.938 lb)
- Price in first year of sale
- 37.00 GBP
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Jim Greig. See "Data change" for further contributors.
