• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Murphy (Brand), Westco Products Ltd. & Allied Industries Ltd.; Auckland

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 347951

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Murphy Carina SG610 - Murphy Brand, Westco Products

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

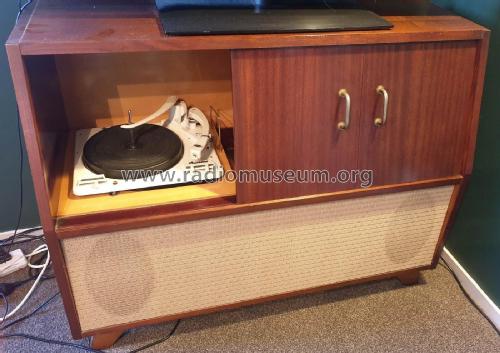

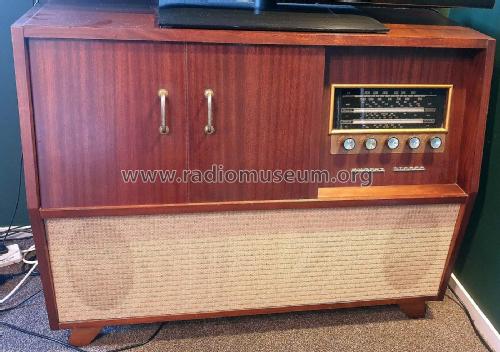

• 6 valve broadcast (MW) superhet stereo console radiogram finished in Mahogany or Walnut. Garrard RC130 Mk II stereophonic record changer and elliptical speakers.

  Valves:

  • Early ECH42 EBF89 ECC83 EL41 EL41 EZ40
  • Late ECH81 EBF89 ECC83 EL84 EL84 EZ80

  See also models SG611 Miranda & SG615 Oberon using the same chassis.

  Manufactured by Allied Distributors Ltd for Fisher & Paykel Ltd.

• Price in first year of sale
• 79.75 NZ £

• Mentioned in
• -- Original prospect or advert (Press 14 July 1960 Page 12)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
