• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Murphy (Brand), Westco Products Ltd. & Allied Industries Ltd.; Auckland

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 343606

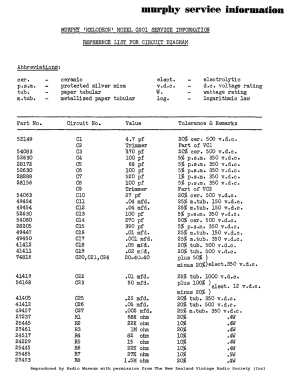

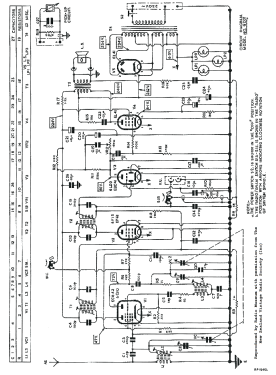

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EZ41

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Murphy Melodeon G201 - Murphy Brand, Westco Products

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 34.5 x 31 x 16.25 inch / 876 x 787 x 413 mm

• Notes

• 5-Valve Superhet broadcast (MW) console radiogram.

  Garrard 120 auto record changer.

  Cabinet finished in Blonde Ash or Walnut veneer.

• Price in first year of sale
• 75.00 NZ £

• Mentioned in
• -- Original prospect or advert (Press July 1958 Page 7)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
