• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Murphy (Brand), Westco Products Ltd. & Allied Industries Ltd.; Auckland

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 341101

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• XA102 XA101 XA101 XB102 XB103 GET114 GET114

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / D: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

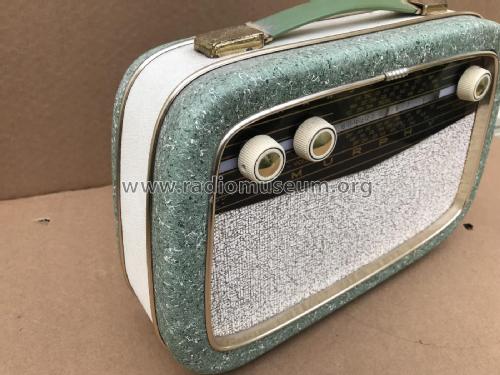

• Model: Murphy P71 - Murphy Brand, Westco Products

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Manufactured by Allied Industries Ltd, NZ under license from Murphy Radio Ltd, England. Distributed by Fisher and Paykel Ltd.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
