TB299L

Murphy Radio Ltd.; Welwyn Garden City

Data
Forum
Pictures
Collections

  • Year
  • 1956 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 320731

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.

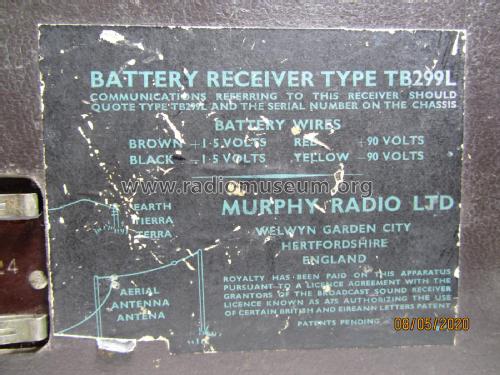

  • Power type and voltage
  • Dry Batteries / 1.5 + 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: TB299L - Murphy Radio Ltd.; Welwyn
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 11 x 8 x 5.5 inch / 279 x 203 x 140 mm
  • Notes

  • Battery powered table radio with Bands  LW 1000-2000m,  MW 200-550m,  SW 16-49m.

    Similar to the Murphy TB299 which has a second SW band instead of LW.

  • Net weight (2.2 lb = 1 kg)
  • 5.5 lb (5 lb 8 oz) / 2.497 kg
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Murphy TB299L schematic)
  • Author
  • Model page created by Nick Alexiou. See "Data change" for further contributors.
