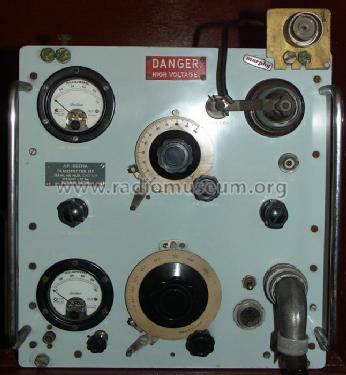

Transmitter MF. 618 AP100334

Murphy Radio Ltd.; Welwyn Garden City

Data
Forum
Pictures
Collections

  • Year
  • 1955 ??
  • Category
  • Commercial Transmitter (TX not Transceiver)
  • Radiomuseum.org ID
  • 120608

 Technical Specifications

  • Number of Tubes
  • 3
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120; 220-245 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Transmitter MF. 618 [AP100334] - Murphy Radio Ltd.; Welwyn
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 13.1 x 14.1 x 14 inch / 333 x 358 x 356 mm
  • Notes
  • M.F. Transmitter covering 330-550 kHz, CW, MCW.
    Pout 15W.
    This mediumwave transmitter is a part of the 618 / CAS receiver outfit, together with the receiver Adm.Patt. 100335 and the H.F. transmitter Adm.Patt. 100333. The matching Power Supply is Adm.Patt. 100336.
    This wireless system has been used on different smaller Royal Navy vessels and replaced the systems TCS, 607E, 608E and 60EQR.
  • Net weight (2.2 lb = 1 kg)
  • 32.8 kg / 72 lb 3.9 oz (72.247 lb)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Martin Bösch. See "Data change" for further contributors.
