Music Master Petite 4 tubes
Music Master; Chicago (1930's)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Music Master; Chicago (1930's)
- Year
- 1931 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 349680
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Direct Current supply (DC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

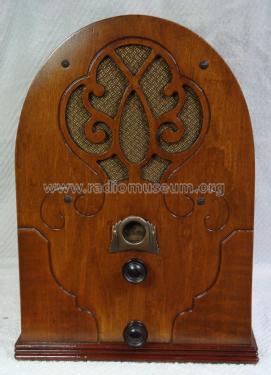

- Model: Music Master Petite [4 tubes] - Music Master; Chicago 1930's
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 10.5 x 14.5 x 8.625 inch / 267 x 368 x 219 mm
- Author
- Model page created by Terry Rohler. See "Data change" for further contributors.
