Active Subwoofer Basis 14K
Musikelectronic Geithain, VEB; - Musikelektronik Geithain, PGH; (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Musikelectronic Geithain, VEB; - Musikelektronik Geithain, PGH; (Ostd.)
- Year
- 2005 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 252343

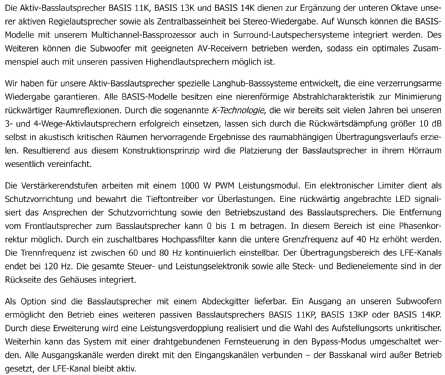

Aus Herstellerprospekt

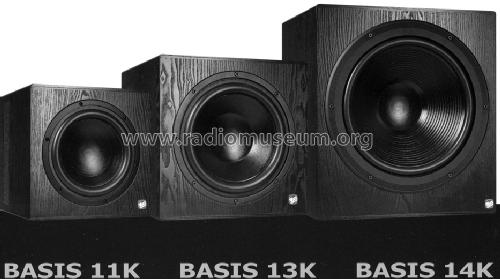

Aus Herstellerprospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Loudspeaker + integr.Amplifier
- Power type and voltage
- Alternating Current supply (AC) / 90-132; 190-265 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 40 cm = 15.7 inch
- Power out
- 1000 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Active Subwoofer Basis 14K - Musikelectronic Geithain, VEB;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 500 x 550 x 430 mm / 19.7 x 21.7 x 16.9 inch
- Net weight (2.2 lb = 1 kg)
- 37.8 kg / 83 lb 4.2 oz (83.26 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
