• Country
• Germany

• Manufacturer / Brand
• Musikelectronic Geithain, VEB; - Musikelektronik Geithain, PGH; (Ostd.)

• Year
• 1975 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 264749

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Semiprofessionelle Regieeinrichtung SPR6-HiFi - Musikelectronic Geithain, VEB;

• Shape
• Tablemodel, low profile (big size).

• Notes

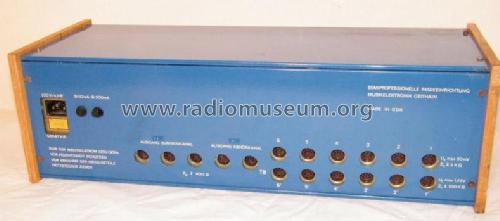

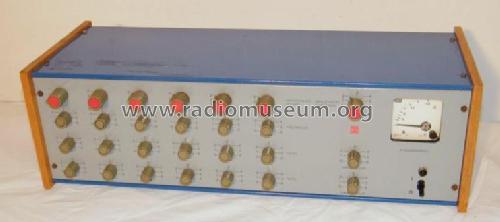

• 6-kanaliges NF-Signalquellen-Mixgerät mit eingebautem Pegelmesser; Kastengehäuse aus Metall mit Holzwangen. DIN-Signalein- und -ausgänge auf der Rückseite, Bedienelemente frontseitig. Leistungsaufnahme: 4,5 Watt.

• Net weight (2.2 lb = 1 kg)
• 7.7 kg / 16 lb 15.4 oz (16.96 lb)

• Author
• Model page created by Michael Mischke. See "Data change" for further contributors.
