Leistungsverstärker V941
Musikelectronic Geithain, VEB; - Musikelektronik Geithain, PGH; (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Musikelectronic Geithain, VEB; - Musikelektronik Geithain, PGH; (Ostd.)
- Year
- 1976
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 92125
Ebay auction by user abt1302 110992050714

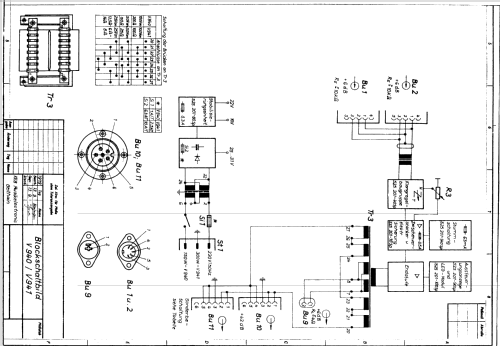

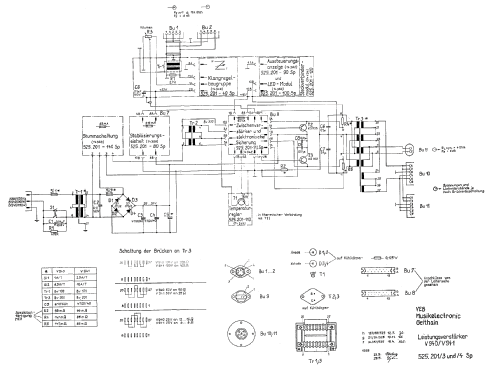

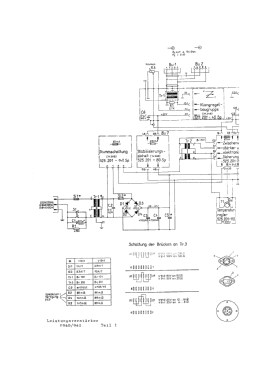

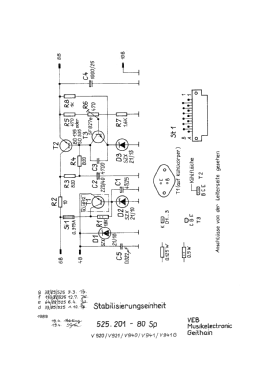

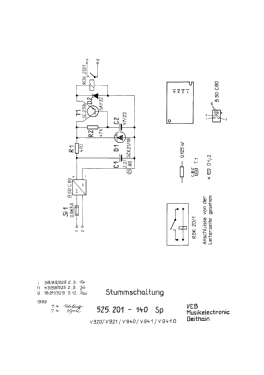

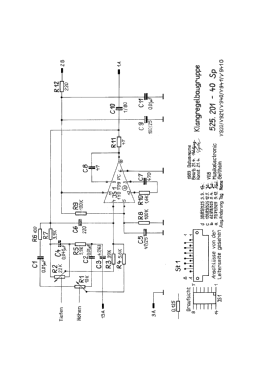

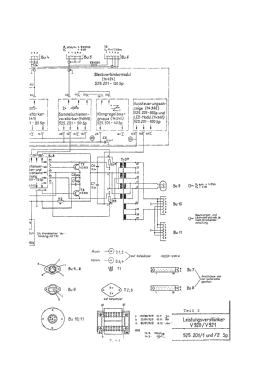

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Leistungsverstärker V941 - Musikelectronic Geithain, VEB;
- Dimensions (WHD)
- 543 x 155 x 360 mm / 21.4 x 6.1 x 14.2 inch
- Notes
- Ausgang 100 V/100 Ohm und 50 V/25 Ohm. Eingang symetrisch, Ausgangsleistung Sinus 100 W, Musik 180 W.
- Net weight (2.2 lb = 1 kg)
- 20 kg / 44 lb 0.8 oz (44.053 lb)
- Source of data
- -- Original-techn. papers.
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Berthold Grenz. See "Data change" for further contributors.
