Kombi-Testgerät SP 701G

• Country
• Germany

• Manufacturer / Brand
• Müter, Ulrich; Oer-Erkenschwick

• Year
• 1990 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 203281

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220-230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Kombi-Testgerät SP 701G - Müter, Ulrich; Oer-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 197 x 56 x 110 mm / 7.8 x 2.2 x 4.3 inch

• Notes

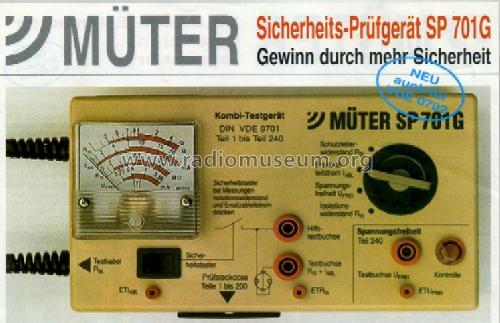

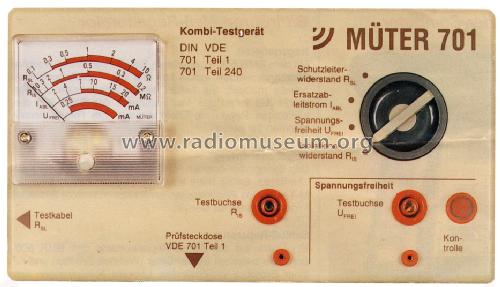

• Müter Kombi-Testgerät SP 701G;
  Zum VDE Test (Isolation etc.) angeschlossener Geräte.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by a member from A. See "Data change" for further contributors.
