• Country
• Germany

• Manufacturer / Brand
• Müter, Ulrich; Oer-Erkenschwick

• Year
• 1985 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 191829

• Number of Transistors
• 16

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

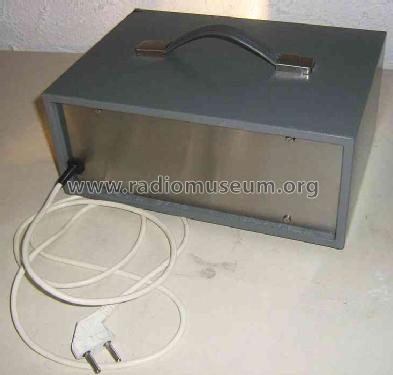

• Model: Testbildsender CSG4 - Müter, Ulrich; Oer-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 288 x 130 x 220 mm / 11.3 x 5.1 x 8.7 inch

• Notes
• Testbildsender CSG 4, HF und Video-Ausgang mit Pegelreglern, Kanalschalter mit zehn Einstellungen UHF-Kanal 21 bis 66, VHF-Kanal 5 bis 12 sowie Sonderkanäle S7 bis S20, Schalter für Normbalken/Rot-Grün-Blau/Weis/Grautreppe und Gitter-Kreis.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
