• Country
• Canada

• Manufacturer / Brand
• NAD, New Acoustic Dimension; Ontario

• Year
• 1976 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 207577

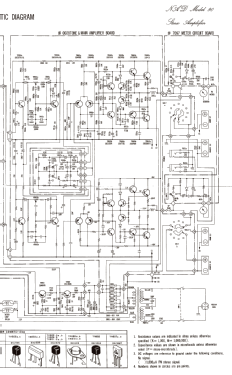

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 35

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo Amplifier Model 90 - NAD, New Acoustic Dimension;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 386 x 130 x 264 mm / 15.2 x 5.1 x 10.4 inch

• Notes
• Stereo Vollverstärker mit 2x 50 Watt Sinus an 8 Ohm.
  2 beleuchtete VU-Meter, 2 Mikrofon-, 4 Lautsprecher-, 2 Kopfhörer- und 2 Tonbandmonitoranschlüsse.
  Getrennte Klangregler für den rechten und linken Kanal.
  13 Dioden.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 900.00 DM

• Mentioned in
• High Fidelity Jahrbuch 8

Bedienungsanleitung mehrsprachig - en - de - fr
