StereoTurntable 533

NAD, New Acoustic Dimension; Ontario

Data
Forum
Pictures
Collections

  • Year
  • 1997 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 345432

 Technical Specifications

  • Main principle
  • Export model
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 220 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: StereoTurntable 533 - NAD, New Acoustic Dimension;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 447 x 115 x 356 mm / 17.6 x 4.5 x 14 inch
  • Notes

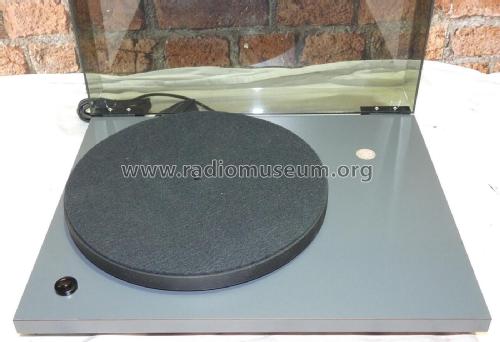

  • 2 Speed Belt driven manual Turntable Model NAD 533

    NAD badged, budget version of the Rega Planar 2 that uses an MDF platter instead of glass and an OEM version of the RB250 Tonearm.

    The turntable features a high-torque synchronous motor, high-density non resonant base, high quality Goldring Elektra cartridge, a one piece aluminium pressure cast tone arm, miniature ball bearings in the tonearm, static balancing and magnetic anti-skate device.

    Dust Cover

  • Net weight (2.2 lb = 1 kg)
  • 5.250 kg / 11 lb 9 oz (11.564 lb)
  • Price in first year of sale
  • 750.00 DM
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
