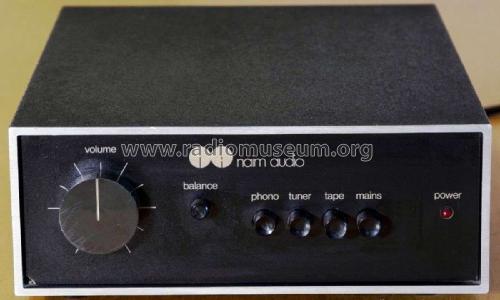

Nait

Naim Audio Ltd.; Salisbury

Data
Forum
Pictures
Collections

  • Year
  • 1983
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 288629

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 26 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Nait - Naim Audio Ltd.; Salisbury
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 8.125 x 3 x 11.25 inch / 206 x 76 x 286 mm
  • Notes

  • NAIT is an acronym for " Naim Audio Integrated amplifier". Output power specifications never published by Naim but understood to be 2 x 13 watts into 8 ohms. Mute switch, tape monitor switch. One tape monitor input, one MM phono input and two line level inputs.

    Superceded by the NAIT 2 model in 1988.

  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
