Two Head Cassette Deck DR-3

Nakamichi Co.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Nakamichi Co.; Tokyo

Year
1992–1996

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
152754

Schematics

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 1248498) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 1248496) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 1248497) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 1248499) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 1248500) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 1248501) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 1248502) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 2247109) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 2247110) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 2247111) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

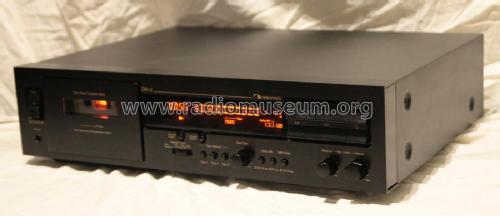

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 2247112) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 2247114) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 2247115) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Two Head Cassette Deck DR-3; Nakamichi Co.; Tokyo (ID = 2247116) R-Player — Nakamichi Co.; Tokyo Two Head Cassette Deck DR-3 (1)

Technical Specifications

Main principle
Audio-Amplification

Wave bands
- without

Details
Cassette-Recorder or -Player; Remote Control (with wire or wireless)

Power type and voltage
Alternating Current supply (AC) / 110; 117; 220; 240 Volt

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Two Head Cassette Deck DR-3 - Nakamichi Co.; Tokyo

Shape
Book-shelf unit.

Dimensions (WHD)
430 x 100 x 320 mm / 16.9 x 3.9 x 12.6 inch

Notes
Frontloading 2 Head Stereo Cassette Deck with Dolby B + C, MPX Filter and Metal Tape Capability. Bias Fine Tune. Auto Tape Equalization. Bi-Directional Auto-Search, Memory Repeat.
4-Digit Digital Counter, Digital Peak-Reading Meters.
Microprocessor Control.
Wired Remote Control.

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: 1 x reel, 1 x capstan, 1 x mechanism
Tape Type: type I, CrO2, Metal (type IV)
Noise Reduction: B, C
Frequency Response: 20 Hz to 20 kHz (Metal tape)
Signal to Noise Ratio: 70 dB (dolby C)
Wow and Flutter: 0.06% (WMRS)
Total Harmonic Distortion: 1.0%
Channel Separation: 36 dB (1kHz, 0dB)
Crosstalk: 60 dB (1 kHz, 0 dB)
Erasure: 60 dB (100 Hz, +10 dB)
BIAS frequency: 105 kHz
Input: 50 mV (line)
Output: 0.5 V (line)

Net weight (2.2 lb = 1 kg)
5.4 kg / 11 lb 14.3 oz (11.894 lb)

Author
Model page created by Franz Scharner. See "Data change" for further contributors.
